Linear Cooldek® Patio Design For Controlled Light And All-season Use

Challenge

In January 2026, Sam Outdoor Living was asked to convert an exposed outdoor strip into a structured, usable zone that could operate independently of weather conditions. The client required a solution that would not only provide shelter, but also regulate heat, manage light, and maintain a consistent level of comfort throughout the year. The layout presented a long, narrow footprint, which required careful consideration of load distribution, lighting uniformity, and airflow to avoid creating a confined or uneven space.

Solution

The project was approached as a linear system rather than a standard patio install. A flat Cooldek® roof spanning 8.9 by 3.4 metres was selected to match the proportions of the area while maintaining structural efficiency. The roof incorporated 50mm insulated panels, engineered to reduce thermal transfer and dampen external noise, particularly during rainfall. Load-bearing requirements were addressed using a combination of 150x150mm aluminium posts and 140x50mm Probeam members. This configuration allowed the structure to maintain rigidity across the extended span without introducing unnecessary visual bulk. The aluminium posts provided corrosion resistance, while the Probeam ensured consistent load distribution along the length of the patio.

To prevent the space from becoming overly enclosed, Ez-glaze polycarbonate sections were integrated into the roofline. These panels introduce controlled daylight into the area, reducing reliance on artificial lighting during the day while maintaining protection from UV exposure and precipitation.

A 200mm edge gutter system was installed along the perimeter of the roof to manage water flow efficiently. The gutter was sized to handle peak rainfall conditions, directing runoff into the stormwater system to prevent overflow and water pooling near the structure. Internal usability was enhanced through the installation of eight evenly spaced downlights, calibrated to provide consistent illumination across the full length of the patio. Two smart ceiling fans were positioned to create cross-ventilation, ensuring airflow remains effective despite the elongated layout.

Results

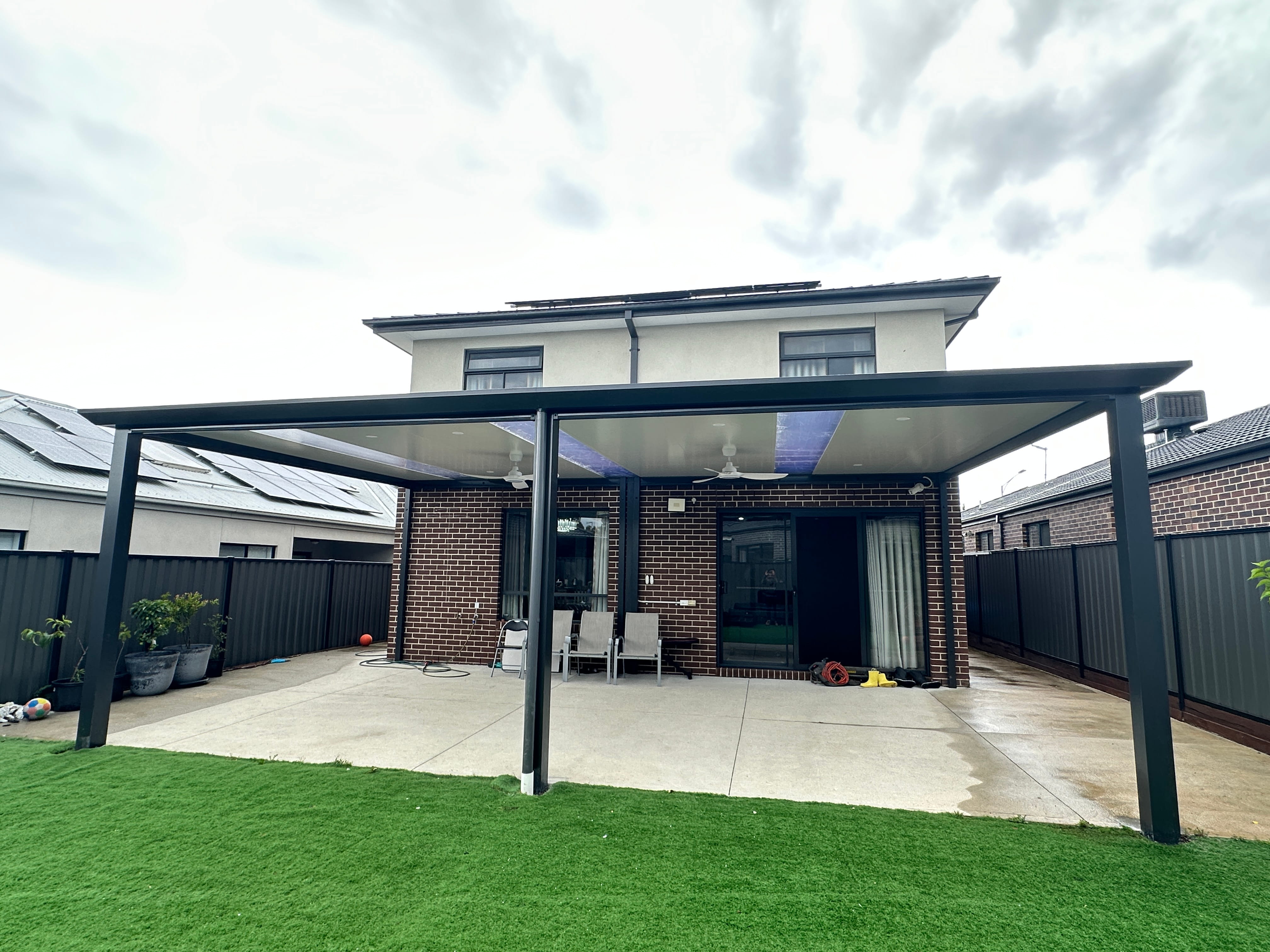

The completed structure operates as a controlled outdoor environment rather than a simple covered area. The insulation layer stabilizes internal temperature, while the skylight integration maintains visual openness without sacrificing protection. Lighting and airflow systems work together to ensure the space remains functional from day to night, across varying weather conditions.

Material selection from Bondor, Stratco, and Palram ensures long-term durability with minimal maintenance requirements. The final result is a technically balanced outdoor extension that supports daily use, improves spatial efficiency, and increases the overall value of the property.
